INDAFLEX CHEMCIAL S/D HOSE

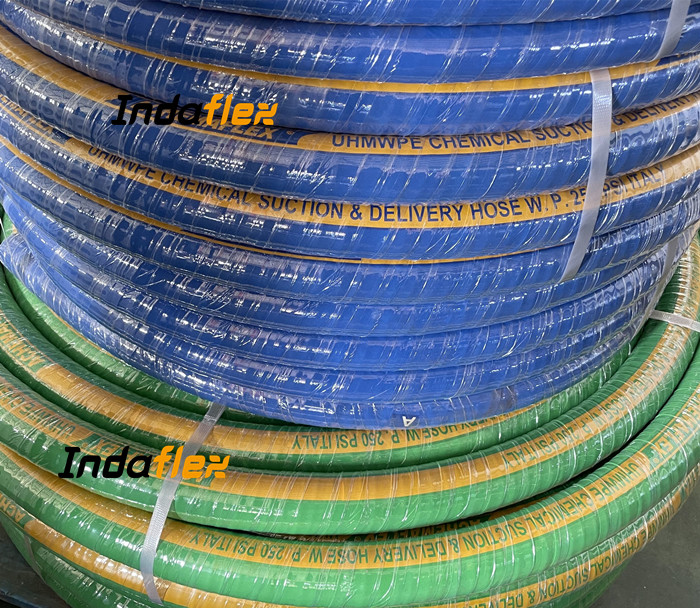

INDAFLEX CHEMICAL SUCTION AND DISCHARGE HOSE
Inner Tube: UHMWPE/XLPE
Reinforcement: High tensile textile cord with helix steel wire
Cover: Green/Blue, EPDM Synthetic rubber
Working Pressure: 16bar
Working Temperature : -40℃ to +120℃
Features: Flexible Designed for handling 98% of all chemicals, solvents and corrosive liquids in both pressure and suction service.
Technical details
|
Hose I.D |
Hose O.D |
Working Pressure |
Burst Pressure |
Minimum Bend Radius |
Weight |
Length |
|||
|
Inch |
mm |
mm |
Bar |
Psi |
Bar |
Psi |
mm |
Kg/m |
Meter/Roll |
|
3/4” |
19 |
31 |
16 |
240 |
48 |
720 |
200 |
0.7 |
40 |
|
1” |
25 |
37 |
16 |
240 |
48 |
720 |
250 |
0.9 |
40 |
|
1-1/4” |
32 |
45 |
16 |
240 |
48 |
720 |
250 |
1.3 |
40 |
|
1-1/2” |
38 |
53 |
16 |
240 |
48 |
720 |
250 |
1.6 |
40 |
|
2” |
51 |
66 |
16 |
240 |
48 |
720 |
300 |
2.2 |
40 |
|
2-1/2” |
64 |
81 |
16 |
240 |
48 |
720 |
400 |
3.0 |
40 |
|
3” |
76 |
93 |
16 |
240 |
48 |
720 |
400 |
3.5 |
40 |
|
4” |
102 |
120 |
16 |
240 |
48 |
720 |
500 |
5.5 |
40 |
|
6” |
152 |
172 |
16 |
240 |
48 |
720 |
600 |
9.2 |
40 |
