WATER SUCTION AND DISCHARGE HOSE

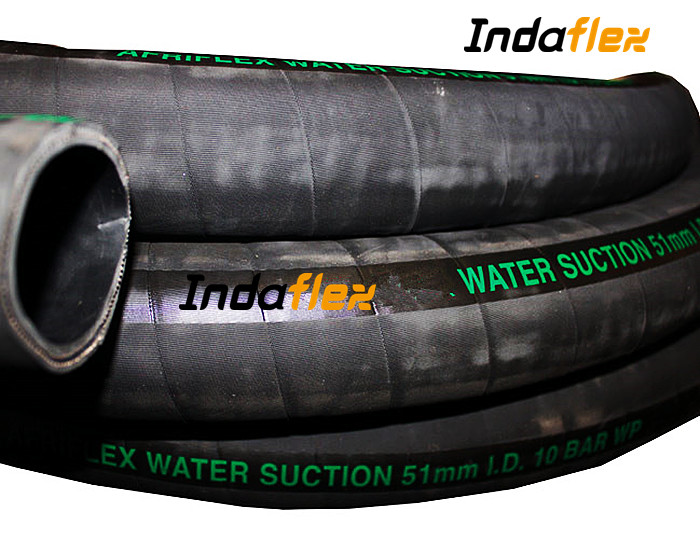

INDAFLEX FUEL WATER SUCTION AND DISCHARGE HOSE
Inner Tube: NR/SBR rubber
Reinforcement: High tensile textile cord with helix steel wire
Working Pressure: 10bar
Working Temperature : -20℃ to +80℃
Features: Designed for full suction and discharge pressure, it handles sewage,waster water,etc.
Technical details
|
Hose I.D |
Hose O.D |
Working Pressure |
Burst Pressure |
Minimum Bend Radius |
Weight |
Length |
|||
|
Inch |
mm |
mm |
Bar |
Psi |
Bar |
Psi |
mm |
Kg/m |
Meter/Roll |
|
3/4” |
19 |
30 |
10 |
150 |
30 |
450 |
150 |
0.7 |
40 |
|
1” |
25 |
36 |
10 |
150 |
30 |
450 |
150 |
0.9 |
40 |
|
1-1/4” |
32 |
44 |
10 |
150 |
30 |
450 |
200 |
1.1 |
40 |
|
1-1/2” |
38 |
51 |
10 |
150 |
30 |
450 |
250 |
1.5 |
40 |
|
2” |
51 |
64 |
10 |
150 |
30 |
450 |
300 |
1.9 |
40 |
|
2-1/2” |
64 |
80 |
10 |
150 |
30 |
450 |
350 |
2.9 |
40 |
|
3” |
76 |
92 |
10 |
150 |
30 |
450 |
460 |
3.4 |
40 |
|
3-1/2” |
89 |
107 |
10 |
150 |
30 |
450 |
500 |
4.0 |
40 |
|
4” |
102 |
120 |
10 |
150 |
30 |
450 |
600 |
5.0 |
40 |
|
5” |
127 |
147 |
10 |
150 |
30 |
450 |
700 |
7.4 |
40 |
|
6” |
152 |
172 |
10 |
150 |
30 |
450 |
800 |
8.8 |
40 |
|
8” |
203 |
229 |
10 |
150 |
30 |
450 |
1000 |
14.0 |
40 |
