SAE 100 R14 TEFLON HOSE
INDAFLEX Hydraulic Hose SAE 100 R14 TEFLON HOSE

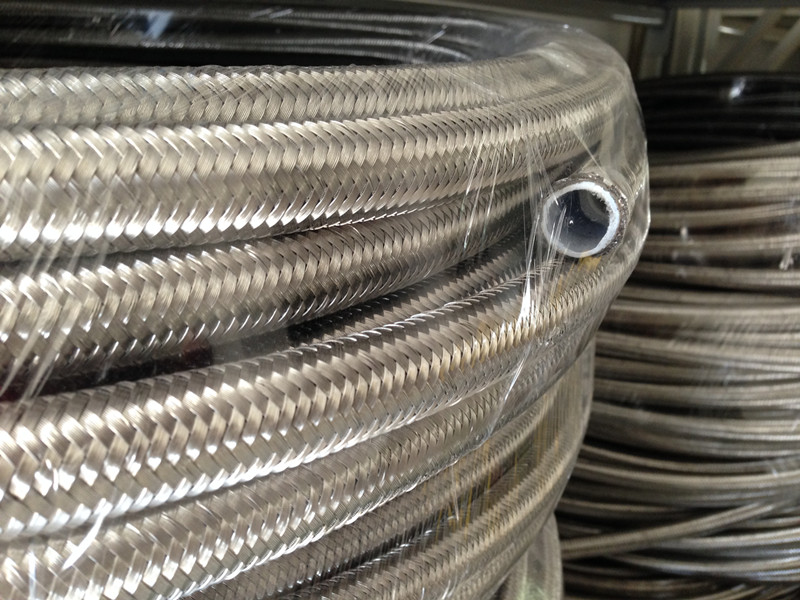

PTFE HOSE SAE 100 R14
Hose Structure
Inner Tube: PTFE
Reinforcement: Stainless steel braided
Performance: High-temperature resistance, long persistence and durability, high chemical, ozone resistance, low friction, long life without ageing problem.
Application: Because of the wide service temperature range, the hose widely used in food industry, high/low temperature fluid, chemical industry, compressor discharge.
Temperature: -73 ºC to +260 ºC.
|
Hose Size
|
Hose I.D
|
Hose O.D
|
Working Pressure
|
Burst Pressure
|
Minimum Bend Radius
|
Weight
|
|||
|
DN
|
Inch
|
mm
|
mm
|
Bar
|
Psi
|
Bar
|
Psi
|
mm
|
g/m
|
|
3
|
1/8
|
3.5
|
6.6
|
105
|
1522
|
827
|
12000
|
40
|
65
|
|
5
|
3/16
|
4.8
|
7.9
|
105
|
1522
|
689
|
10000
|
50
|
95
|
|
6
|
1/4
|
6.4
|
9.5
|
105
|
1522
|
620
|
9035
|
75
|
120
|
|
8
|
5/16
|
8
|
11.1
|
105
|
1522
|
552
|
8000
|
100
|
160
|
|
10
|
3/8
|
9.5
|
12.6
|
105
|
1522
|
483
|
7000
|
125
|
170
|
|
13
|
1/2
|
12.9
|
16.1
|
56
|
812
|
414
|
6000
|
165
|
240
|
|
16
|
5/8
|
16.2
|
19.7
|
56
|
812
|
345
|
5000
|
200
|
280
|
|
19
|
3/4
|
19.0
|
23.6
|
56
|
812
|
276
|
4000
|
230
|
330
|
|
22
|
7/8
|
22.3
|
26.4
|
56
|
812
|
241
|
3500
|
230
|
390
|
|
25
|
1
|
25.5
|
29.6
|
56
|
812
|
241
|
3500
|
300
|
460
|
