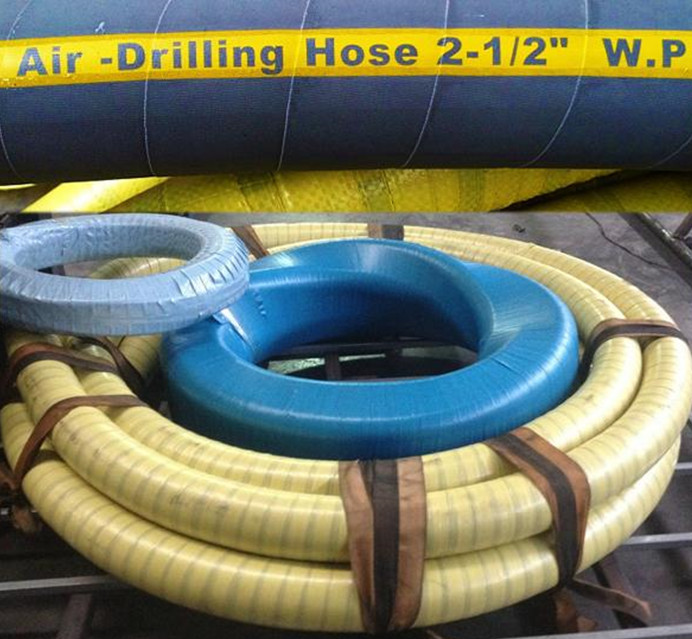

INDAFLEX AIR DRILLING HOSE
Industrial Rubber Drill Air Hose for Air Compressor and Drill Rig
Tube: Black, Synthetic rubber
Reinforcement: Two braids of high-tensile steel wires.
Cover: Black, synthetic rubber, All sizes perforated
Working Pressure: 45bar to 85 bar
Temperature range: -40℉~275℉; (-40℃ to +135℃)
Conveying medium: Compressed air
Features: High pressure and high temperature air hose used on industrial, construction, pneumatic mining and drilling applications requiring wire braided hose with a high degree of hot air resistance
|
Hose I.D |
Hose O.D |
Working Pressure |
Burst Pressure |
Minimum Bend Radius |
Weight |
||||
|
Inch |
mm |
Inch |
mm |
Bar |
Psi |
Bar |
Psi |
mm |
Kg/m |
|
1-1/2” |
38 |
1-7/8” |
48.0 |
80 |
1160 |
200 |
2900 |
500 |
1.50 |
|
2” |
51 |
2-1/2” |
64.0 |
80 |
1160 |
200 |
2900 |
630 |
1.90 |
|
2-1/2” |
64 |
3” |
78.0 |
80 |
1160 |
200 |
2900 |
960 |
2.60 |
|
3” |
76 |
3-1/2” |
90 |
80 |
1160 |
200 |
2900 |
1140 |
3.00 |
