Multipurpose Hose

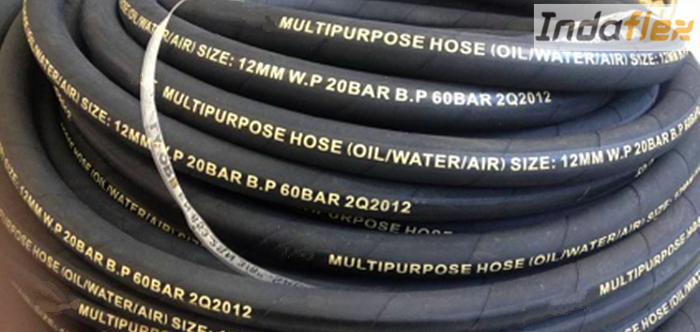

INDAFLEX Multipurpose Hose 20bar/300PSI
Hose Structure
Tube: Air, water , Oil, Fuel and Gasoline resistant synthetic rubber
Reinforcement: one steel wire braid
Cover: Black, Red, Yellow, Wrapped, Abrasion, weather and ozone resistant synthetic Rubber
Temperature: -25 ºC + 90 ºC
|
Inside Diameter
|
Outer Diameter |
Working Pressure |
Burst Pressure |
Radius |
Weight |
Roll |
|||||
|
mm |
Inch |
mm |
Inch |
Bar |
psi |
Bar |
Psi |
mm |
Inch |
Kg/M |
M/Roll |
|
6.3 |
1/4 |
14.0 |
0.55 |
20 |
300 |
60 |
900 |
23 |
0.91 |
0.16 |
50~100 |
|
8 |
5/16 |
15.5 |
0.61 |
20 |
300 |
60 |
900 |
28 |
1.10 |
0.23 |
50~100 |
|
10 |
3/8 |
17.5 |
0.69 |
20 |
300 |
60 |
900 |
35 |
1.38 |
0.26 |
50~100 |
|
12 |
1/2 |
22.0 |
0.87 |
20 |
300 |
60 |
900 |
53 |
2.09 |
0.35 |
50~100 |
|
16 |
5/8 |
26.5 |
1.04 |
20 |
300 |
60 |
900 |
70 |
2.76 |
0.43 |
50~100 |
|
19 |
3/4 |
29.4 |
1.16 |
20 |
300 |
60 |
900 |
78 |
3.08 |
0.54 |
50~100 |
|
25 |
1 |
36.2 |
1.43 |
20 |
300 |
60 |
900 |
95 |
3.74 |
0.68 |
50 |
