DIN EN 857 1SC

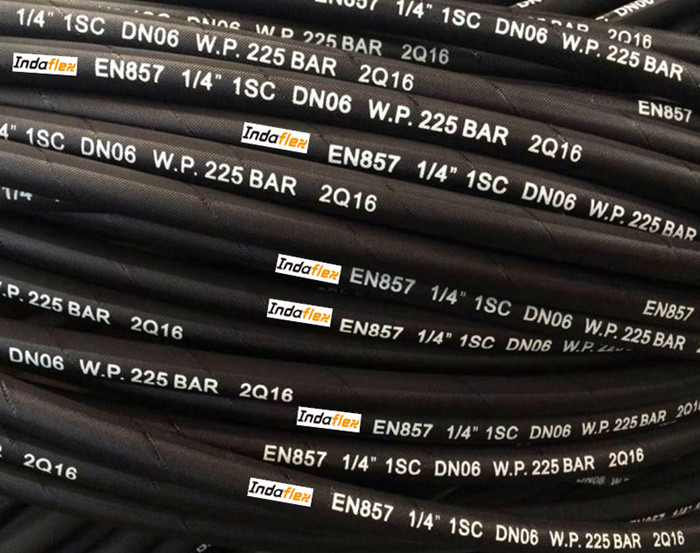

INDAFLEX DIN EN 857 1SC
Steel Wire Braid Hydraulic Rubber Hose
DIN EN 857 1SC
Recommended: for low medium pressure,petroleum based fluids or glycol-water based fluids at high pressure,such as mineral oils, fuels,hydrocarbons.
Tube: Black, Oil resistant synthetic rubber
Reinforcement: One braid of high tensile steel wire
Cover: Black, Oilproof, Abrasion and weather resistant synthetic rubber
Working Temperature: -40 ºC to +100 ºC
Special Features: Good flexibility, lower bend radius. Suitable for complex high pressure hydraulic circuits. Validated for 300,000 impulse cycles.
Technical Details
|
Hose Size |
Hose I.D |
Hose O.D |
Working Pressure |
Min. Burst Pressure |
Min. Bend Radius |
Weight |
Length |
||||||
|
DN |
Dash |
Inch |
mm |
Inch |
mm |
Bar |
Psi |
Bar |
Psi |
Inch |
mm |
Kg/m |
Meter/Roll |
|
6 |
-4 |
1/4 |
6.4 |
0.48 |
12.2 |
225 |
3260 |
900 |
13050 |
2.95 |
75 |
0.18 |
50/100 |
|
8 |
-5 |
5/16 |
7.9 |
0.53 |
13.5 |
215 |
3120 |
850 |
12325 |
3.35 |
85 |
0.21 |
50/100 |
|
10 |
-6 |
3/8 |
9.5 |
0.61 |
15.6 |
180 |
2610 |
720 |
10440 |
3.54 |
90 |
0.28 |
50/100 |
|
12 |
-8 |
1/2 |
12.7 |
0.75 |
19.0 |
160 |
2320 |
640 |
9280 |
5.12 |
130 |
0.33 |
50/100 |
|
16 |
-10 |
5/8 |
15.9 |
0.88 |
22.4 |
130 |
1900 |
520 |
7600 |
5.91 |
150 |
0.41 |
50/100 |
|
19 |
-12 |
3/4 |
19.0 |
1.02 |
26.0 |
105 |
1520 |
420 |
6090 |
7.09 |
180 |
0.52 |
50/100 |
|
25 |
-16 |
1 |
25.4 |
1.31 |
33.3 |
88 |
1280 |
350 |
5075 |
9.06 |
230 |
0.78 |
50 |
