DIN EN 853 1SN/SAE 100 R1AT
INDAFLEX DIN EN 853 1SN/SAE 100 R1AT

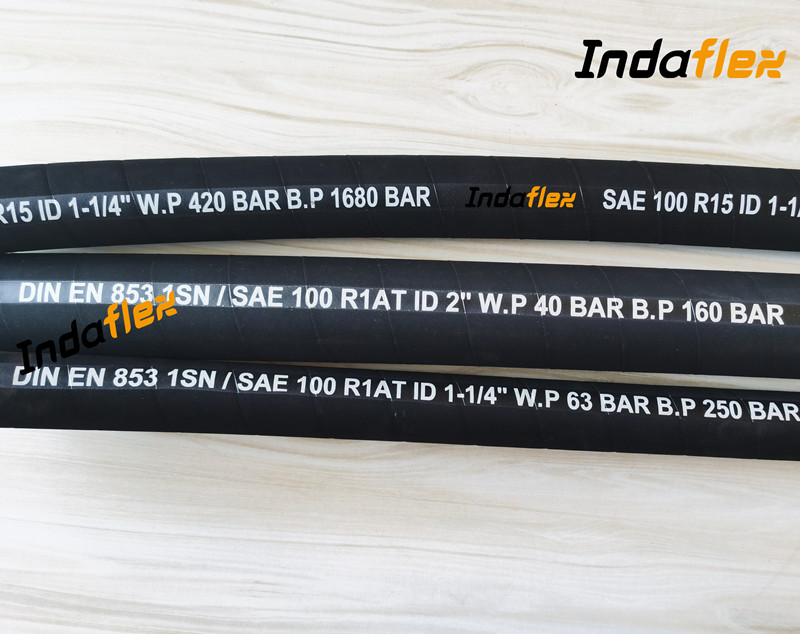

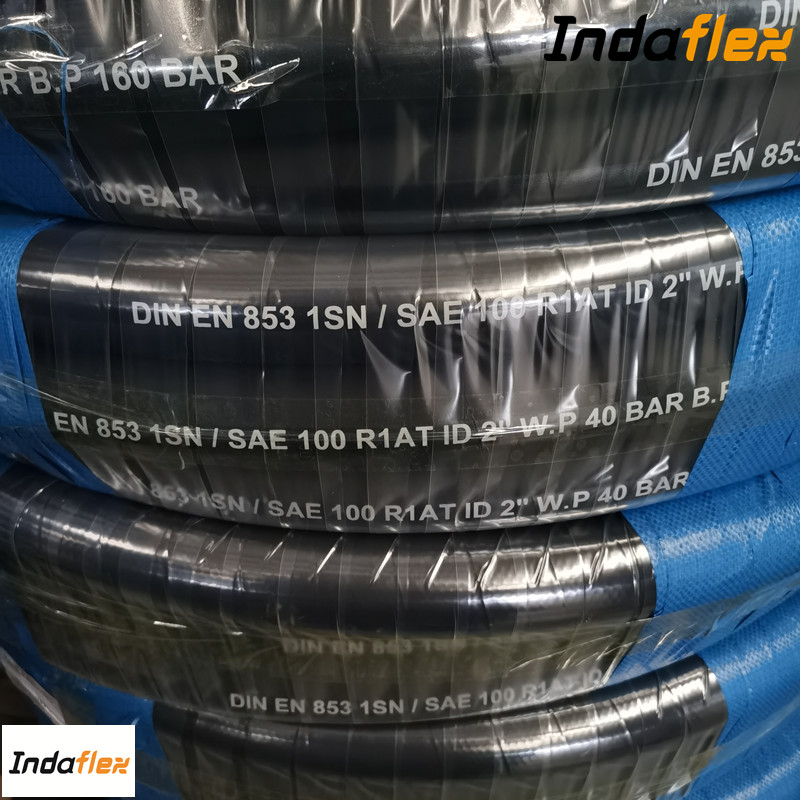

Steel Wire Braid Hydraulic Hose
DIN EN 853 1SN/SAE 100 R1AT
Tube: Black, Oil resistant synthetic rubber
Reinforcement: One braid of high tensile steel wire
Cover: Black, Oilproof, Abrasion and weather resistant synthetic rubber
Working Temperature: -40 ºC to +100 ºC
Applications: For transmission of hydraulic fluids, such as mineral oils, emulsions, hydrocarbons etc. Mine hydraulic support,oilfield machinery, mine/Road/Construction machinery.
Technical Details
|
Hose Size |
Hose I.D |
Hose O.D |
Working Pressure |
Min. Burst Pressure |
Min. Bend Radius |
Weight |
Length |
||||||
|
DN |
Dash |
Inch |
mm |
Inch |
mm |
Bar |
Psi |
Bar |
Psi |
Inch |
mm |
Kg/m |
Meter/Roll |
|
6 |
-4 |
1/4 |
6.4 |
0.52 |
13.1 |
225 |
3260 |
900 |
13050 |
3.92 |
100 |
0.25 |
50/100 |
|
8 |
-5 |
5/16 |
7.9 |
0.58 |
14.7 |
215 |
3120 |
850 |
12325 |
4.52 |
115 |
0.31 |
50/100 |
|
10 |
-6 |
3/8 |
9.5 |
0.67 |
17.1 |
180 |
2610 |
720 |
10440 |
4.92 |
125 |
0.36 |
50/100 |
|
12 |
-8 |
1/2 |
12.7 |
0.80 |
20.3 |
160 |
2320 |
640 |
9280 |
7.09 |
180 |
0.45 |
50/100 |
|
16 |
-10 |
5/8 |
15.9 |
0.92 |
23.4 |
130 |
1900 |
520 |
7600 |
7.87 |
200 |
0.52 |
50/100 |
|
19 |
-12 |
3/4 |
19.0 |
1.08 |
27.4 |
105 |
1520 |
420 |
6090 |
9.45 |
240 |
0.66 |
50/100 |
|
25 |
-16 |
1 |
25.4 |
1.40 |
35.5 |
88 |
1280 |
350 |
5075 |
11.81 |
300 |
0.91 |
50 |
|
32 |
-20 |
11/4 |
31.8 |
1.69 |
43.0 |
63 |
910 |
250 |
3625 |
16.54 |
420 |
1.30 |
40 |
|
38 |
-24 |
11/2 |
38.1 |
1.95 |
49.5 |
50 |
725 |
200 |
2900 |
19.69 |
500 |
1.70 |
40 |
|
51 |
-32 |
2 |
50.8 |
2.48 |
63.0 |
40 |
580 |
160 |
2320 |
24.80 |
630 |
2.00 |
40 |
|
63 |
40 |
21/2 |
63.8 |
3.03 |
77.0 |
25 |
360 |
100 |
1450 |
29.92 |
760 |
2.56 |
40 |
|
76 |
48 |
3 |
76.0 |
3.46 |
88.0 |
20 |
290 |
80 |
1160 |
34.65 |
880 |
2.74 |
40 |
