DIN EN 857 2SC
INDAFLEX DIN EN 857 2SC

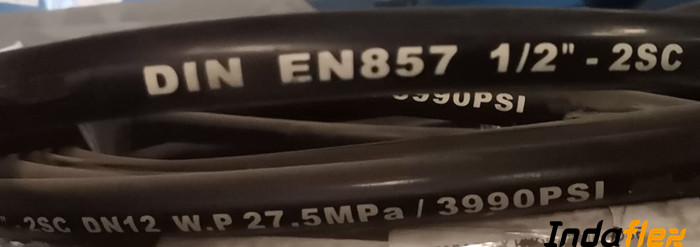

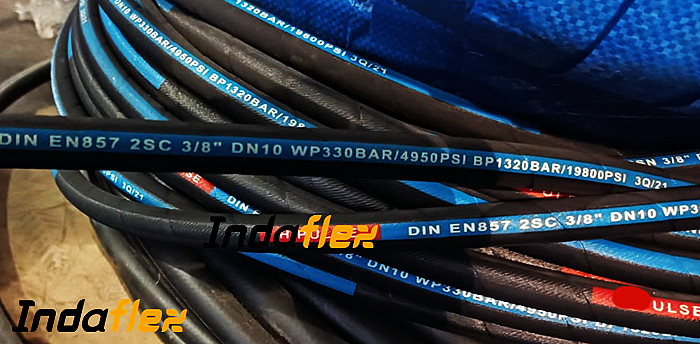

Compact Steel Wire Braid Hydraulic Rubber Hose
DIN EN 857 2SC
Recommended: for medium to high pressure lines, suitable for petroleum based hydraulic fluids, synthetic esters,biodegradable hydraulic fluids,water glycol based fluids and air.
Tube: Black, Oil resistant synthetic rubber
Reinforcement: Two braids of high tensile steel wire
Cover: Black, Oilproof, Abrasion and weather resistant synthetic rubber
Working Temperature: -40 ºC to +100 ºC
Special Features: Compact design, good flexibility, smaller bend radius. Suitable for installation at narrow assembly space. Validated for 400,000 impulse cycles.
Technical Details
|
Hose Size |
Hose I.D |
Hose O.D |
Working Pressure |
Min. Burst Pressure |
Min. Bend Radius |
Weight |
Length |
||||||
|
DN |
Dash |
Inch |
mm |
Inch |
mm |
Bar |
Psi |
Bar |
Psi |
Inch |
mm |
Kg/m |
Meter/Roll |
|
6 |
-4 |
1/4 |
6.4 |
0.53 |
13.5 |
400 |
5800 |
1600 |
23200 |
2.95 |
75 |
0.28 |
50/100 |
|
8 |
-5 |
5/16 |
7.9 |
0.58 |
14.7 |
350 |
5075 |
1400 |
20300 |
3.35 |
85 |
0.33 |
50/100 |
|
10 |
-6 |
3/8 |
9.5 |
0.68 |
17.2 |
330 |
4785 |
1320 |
19200 |
3.54 |
90 |
0.42 |
50/100 |
|
12 |
-8 |
1/2 |
12.7 |
0.81 |
20.5 |
275 |
4000 |
1100 |
16000 |
5.12 |
130 |
0.52 |
50/100 |
|
16 |
-10 |
5/8 |
15.9 |
0.94 |
23.8 |
250 |
3625 |
1000 |
14500 |
6.69 |
170 |
0.61 |
50/100 |
|
19 |
-12 |
3/4 |
19.0 |
1.09 |
27.6 |
215 |
3120 |
850 |
12480 |
7.87 |
200 |
0.79 |
50/100 |
|
25 |
-16 |
1 |
25.4 |
1.39 |
35.4 |
165 |
2400 |
650 |
9600 |
9.84 |
250 |
1.10 |
50 |
