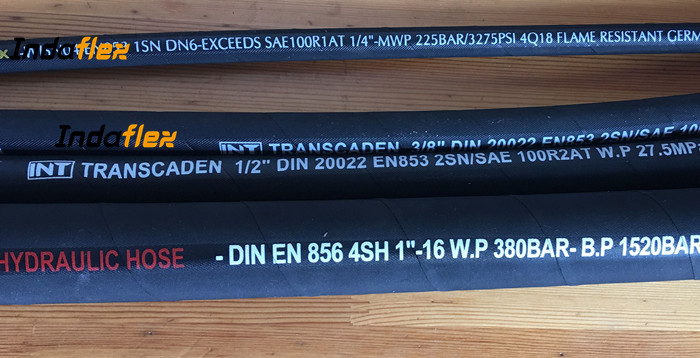

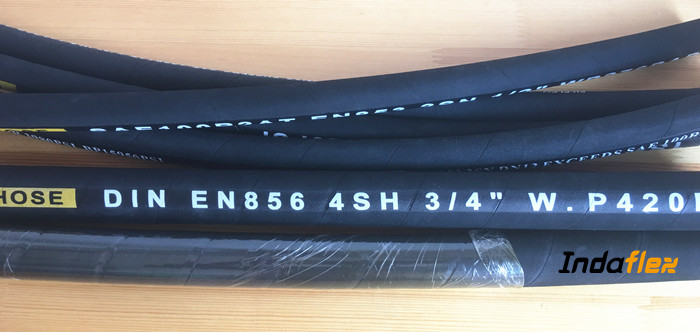

DIN EN 856 4SH
INDAFLEX DIN EN 856 4SH
Steel Wire Spiral Hydraulic Rubber Hose
DIN EN 856 4SH
Inner Tube: Black, Oil resistant synthetic rubber
Reinforcement: Four layers spirals of high tensile steel wire
Cover: Black, Oilproof, Abrasion and weather resistant synthetic rubber
Working Temperature: -40 ºC to +100 ºC
Applications: Extremely high pressure & high impulse hydraulic systems. They are used for biodegradable hydraulic fluid, such as synthetic esters, polyethylene glycol,vegetable oils and petroleum based fluids.
Technical Details
|
Hose Size |
Hose I.D |
Hose O.D |
Working Pressure |
Min. Burst Pressure |
Min. Bend Radius |
Weight |
Length |
||||||
|
DN |
Dash |
Inch |
mm |
Inch |
mm |
Bar |
Psi |
Bar |
Psi |
Inch |
mm |
Kg/m |
Meter/Roll |
|
16 |
-10 |
5/8 |
15.9 |
1.10 |
28.0 |
450 |
6525 |
1800 |
26100 |
9.84 |
250 |
1.30 |
40 |
|
19 |
-12 |
3/4 |
19.1 |
1.24 |
31.5 |
420 |
6090 |
1680 |
24360 |
11.00 |
280 |
1.72 |
40 |
|
25 |
-16 |
1 |
25.4 |
1.48 |
37.6 |
380 |
5510 |
1520 |
22040 |
13.40 |
340 |
2.14 |
40 |
|
32 |
-20 |
11/4 |
31.8 |
1.78 |
45.2 |
325 |
4712 |
1300 |
20300 |
18.11 |
460 |
2.96 |
40 |
|
38 |
-24 |
11/2 |
38.1 |
2.11 |
53.5 |
290 |
4200 |
1160 |
16800 |
22.04 |
560 |
3.20 |
40 |
|
51 |
-32 |
2 |
50.8 |
2.68 |
68.1 |
250 |
3625 |
1000 |
14500 |
27.60 |
700 |
5.30 |
40 |
