DIN EN 856 4SP
INDAFLEX DIN EN 856 4SP

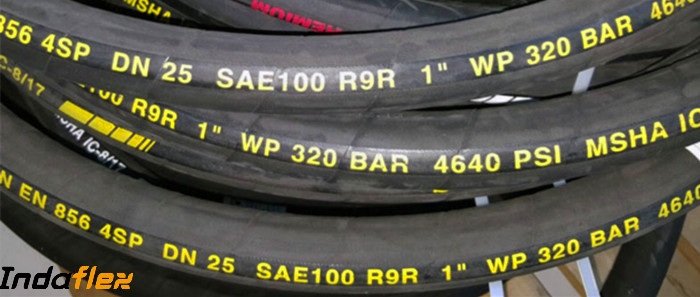

Steel Wire Spiral Hydraulic Rubber Hose
DIN EN 856 4SP
Inner Tube: Black, Oil resistant synthetic rubber
Reinforcement: Four layers spirals of high tensile steel wire
Cover: Black, Oilproof, Abrasion and weather resistant synthetic rubber
Working Temperature: -40 ºC to +100 ºC
Applications: Very high pressure applications used for petroleum based hydraulic fluids.
Technical Details
|
Hose Size |
Hose I.D |
Hose O.D |
Working Pressure |
Min. Burst Pressure |
Min. Bend Radius |
Weight |
Length |
||||||
|
DN |
Dash |
Inch |
mm |
Inch |
mm |
Bar |
Psi |
Bar |
Psi |
Inch |
mm |
Kg/m |
Meter/Roll |
|
10 |
-6 |
3/8 |
9.5 |
0.83 |
21.1 |
445 |
6455 |
1780 |
25820 |
4.33 |
110 |
0.78 |
40 |
|
12 |
-8 |
1/2 |
12.7 |
0.96 |
24.4 |
415 |
6015 |
1660 |
24070 |
4.72 |
120 |
0.93 |
40 |
|
16 |
-10 |
5/8 |
15.9 |
1.09 |
27.7 |
350 |
5075 |
1400 |
20300 |
5.51 |
140 |
1.17 |
40 |
|
19 |
-12 |
3/4 |
19.1 |
1.24 |
31.5 |
350 |
5075 |
1400 |
20300 |
6.69 |
170 |
1.48 |
40 |
|
25 |
-16 |
1 |
25.4 |
1.54 |
39.1 |
280 |
4060 |
1120 |
16240 |
13.38 |
340 |
2.02 |
40 |
|
32 |
-20 |
11/4 |
31.8 |
1.96 |
49.8 |
210 |
3045 |
840 |
12180 |
18.11 |
460 |
3.05 |
40 |
|
38 |
-24 |
11/2 |
38.1 |
2.25 |
57.2 |
185 |
2685 |
740 |
10730 |
22.04 |
560 |
3.52 |
40 |
|
51 |
-32 |
2 |
50.8 |
2.75 |
69.8 |
165 |
2395 |
660 |
9580 |
26.00 |
660 |
5.20 |
40 |
