DIN EN 853 2ST/SAE 100 R2A
INDAFLEX SAE 100 R2A/DIN EN 853 2ST

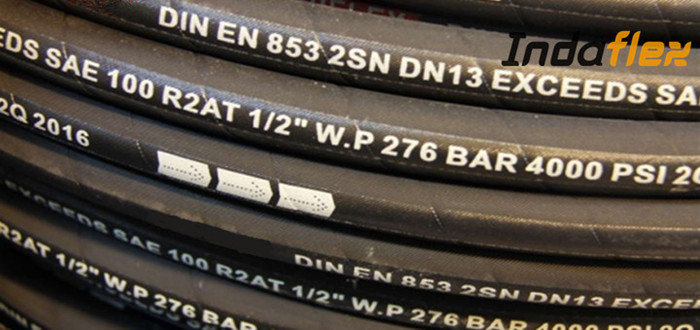

Steel Wire Braid Hydraulic Rubber Hose
SAE 100 R2A/DIN EN 853 2ST
Tube: Black, Oil resistant synthetic rubber
Reinforcement: Two braids of high tensile steel wire
Cover: Black, Oilproof, Abrasion and weather resistant synthetic rubber
Working Temperature Range: -40 ºC to +100 ºC
Applications: For high pressure hydraulic systems in mine hydraulic support,oilfield machinery,agriculture, mine/road/construction machinery.
Technical Details
|
Hose Size |
Hose I.D |
Hose O.D |
Working Pressure |
Min. Burst Pressure |
Min. Bend Radius |
Weight |
Length |
||||||
|
DN |
Dash |
Inch |
mm |
Inch |
mm |
Bar |
Psi |
Bar |
Psi |
Inch |
mm |
Kg/m |
Meter/Roll |
|
6 |
-4 |
1/4 |
6.4 |
0.67 |
17.0 |
400 |
5800 |
1600 |
23200 |
3.94 |
100 |
0.41 |
50/100 |
|
8 |
-5 |
5/16 |
7.9 |
0.73 |
18.5 |
350 |
5075 |
1400 |
20300 |
4.53 |
115 |
0.47 |
50/100 |
|
10 |
-6 |
3/8 |
9.5 |
0.83 |
21.0 |
330 |
4785 |
1320 |
19200 |
4.92 |
125 |
0.60 |
50/100 |
|
12 |
-8 |
1/2 |
12.7 |
0.97 |
24.0 |
275 |
4000 |
1100 |
16000 |
7.09 |
180 |
0.70 |
50/100 |
|
16 |
-10 |
5/8 |
15.9 |
1.07 |
27.2 |
250 |
3625 |
1000 |
14500 |
7.87 |
200 |
0.83 |
50/100 |
|
19 |
-12 |
3/4 |
19.0 |
1.23 |
31.3 |
215 |
3120 |
850 |
12480 |
9.45 |
240 |
1.02 |
50/100 |
|
25 |
-16 |
1 |
25.4 |
1.54 |
39.0 |
165 |
2400 |
650 |
9600 |
11.81 |
300 |
1.38 |
50 |
|
32 |
-20 |
11/4 |
31.8 |
1.95 |
49.5 |
125 |
1810 |
500 |
7240 |
16.54 |
420 |
2.23 |
40 |
|
38 |
-24 |
11/2 |
38.1 |
2.24 |
57.0 |
90 |
1305 |
360 |
5200 |
19.69 |
500 |
2.46 |
40 |
|
51 |
-32 |
2 |
50.8 |
2.70 |
68.5 |
80 |
1160 |
320 |
4640 |
24.80 |
630 |
3.14 |
40 |
