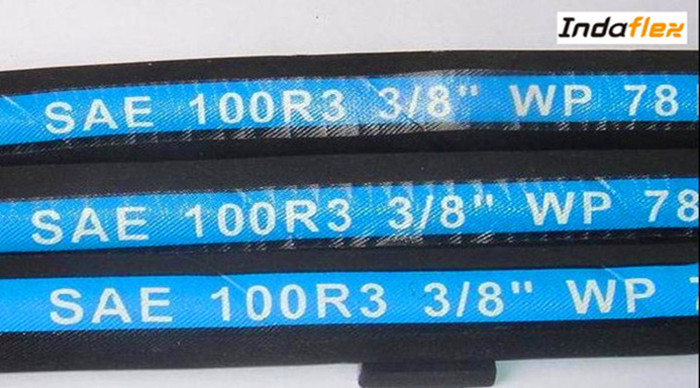

SAE 100 R3
INDAFLEX HYDARULIC HOSE R3
Fiber Braided Hydraulic Rubber Hose R3
SAE J517 100 R3 STANDARD
Tube: Oil resistant synthetic rubber
Reinforcement: Two high tensile textile fiber braids
Cover : Black, Oil, Abrasion and weather resistant synthetic rubber
Temperature Range: -40 ºC to +100ºC
Applications: for transmission of hydraulic fluids, such as mineral oils, emulsions, hydrocarbons etc.
|
Hose Size |
Hose I.D |
Hose O.D |
Working Pressure |
Burst Pressure |
Minimum Bend Radius |
Weight |
Length |
|||||
|
DN |
Dash |
inch |
mm |
mm |
Bar |
Psi |
Bar |
Psi |
mm |
Kg/m |
Meter/Roll |
|
|
5 |
-3 |
3/16 |
4.8 |
12.7 |
105 |
1520 |
420 |
6090 |
75 |
0.16 |
50/100 |
|
|
6 |
-4 |
1/4 |
6.4 |
14.3 |
87 |
1260 |
350 |
5075 |
75 |
0.18 |
50/100 |
|
|
8 |
-5 |
5/16 |
7.9 |
17.5 |
84 |
1220 |
335 |
4860 |
100 |
0.27 |
50/100 |
|
|
10 |
-6 |
3/8 |
9.5 |
19.0 |
78 |
1130 |
315 |
4570 |
100 |
0.31 |
50/100 |
|
|
12 |
-8 |
1/2 |
12.7 |
23.8 |
70 |
1015 |
280 |
4060 |
125 |
0.45 |
50/100 |
|
|
16 |
-10 |
5/8 |
15.9 |
27.0 |
61 |
885 |
245 |
3550 |
140 |
0.53 |
50/100 |
|
|
19 |
-12 |
3/4 |
19.0 |
31.8 |
52 |
750 |
210 |
3045 |
150 |
0.72 |
50/100 |
|
|
25 |
-16 |
1 |
25.4 |
38.0 |
39 |
570 |
157 |
2280 |
205 |
0.90 |
50 |
|
|
32 |
-20 |
11/4 |
31.8 |
44.4 |
26 |
380 |
105 |
1520 |
250 |
1.07 |
20/40 |
|
