SAE 100 R4

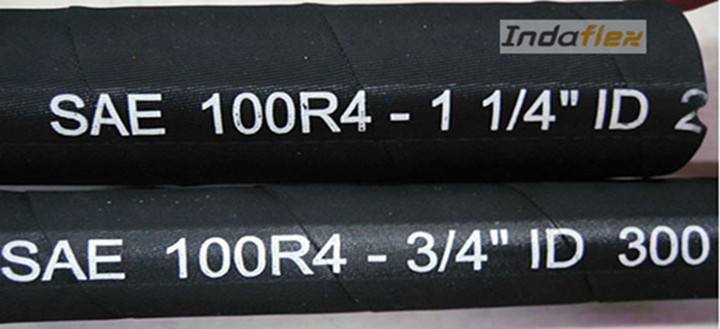

INDAFLEX HYDRAULIC HOSE R4
Hydraulic Suction Hose SAE J517 00 R4 STANDARD
Tube: Oil resistant synthetic rubber
Reinforcement: Consisting of a ply or plies of woven or braided fibers with a suitable spiral of body steel wire
Cover : Black, Oil, Abrasion and weather resistant synthetic rubber
Temperature Range: -40 ºC to +100 ºC
Applications: for transmission of petroleum base hydraulic fluids, such as mineral oils, emulsions, hydrocarbons etc.
|
Hose Size |
Hose I.D |
Hose O.D |
Working Pressure |
Burst Pressure |
Minimum Bend Radius |
Weight |
Length |
||||
|
Max |
|||||||||||
|
DN |
Dash |
inch |
mm |
mm |
Bar |
Psi |
Bar |
Psi |
mm |
Kg/m |
Meter/Roll |
|
19 |
-12 |
3/4 |
19 |
34.9 |
21 |
305 |
84 |
1210 |
125 |
0.92 |
20 |
|
25 |
-16 |
1 |
25.4 |
41.3 |
17 |
250 |
70 |
1015 |
150 |
1.10 |
20 |
|
32 |
-20 |
11/4 |
32 |
50.8 |
14 |
200 |
56 |
810 |
200 |
1.30 |
20 |
|
38 |
-24 |
1-1/2 |
38 |
57.2 |
10.5 |
150 |
42 |
610 |
255 |
1.80 |
20 |
|
51 |
-32 |
2 |
50.8 |
69.9 |
7 |
100 |
28 |
410 |
300 |
2.20 |
20 |
|
63 |
-40 |
21/2 |
63 |
82.6 |
4 |
60 |
17 |
250 |
355 |
3.20 |
20 |
|
76 |
-48 |
3 |
76 |
95.3 |
4 |
60 |
16 |
235 |
460 |
4.25 |
20 |
|
89 |
-56 |
31/2 |
89 |
107.9 |
3 |
40 |
12 |
180 |
530 |
5.00 |
20 |
|
102 |
-64 |
4 |
102 |
120.7 |
2.5 |
40 |
10 |
145 |
610 |
5.60 |
20 |
