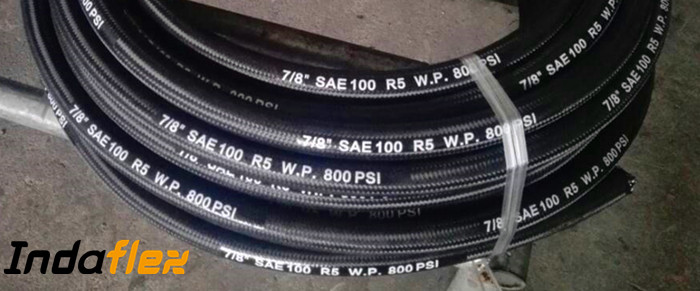

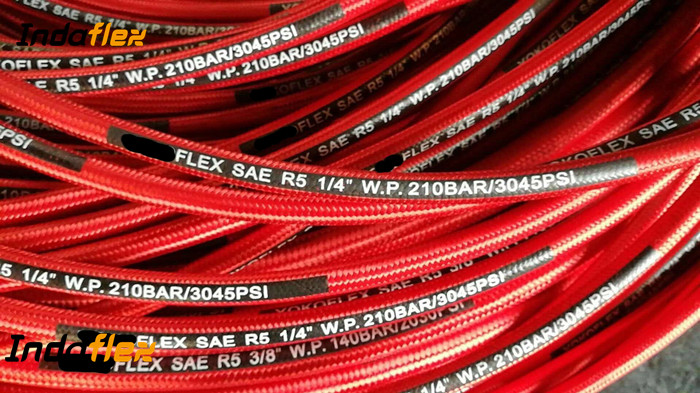

SAE 100 R5
INDAFLEX HYDRAULIC HOSE R5
Single Wire Braid Textile covered SAE J517 100 R5 STANDARD
Tube : Oil resistant synthetic rubber
Reinforcement : One high tensile steel and one textile braid braid
Cover : one Impregnated fiber braid
Temperature range : -40 ºC to +100 ºC
Applications: for transmission of hydraulic fluids, such as mineral oils, emulsions, hydrocarbons etc.
|
Hose Size |
Hose I.D |
Hose O.D |
Working Pressure |
Burst Pressure |
Minimum Bend Radius |
Weight |
Length |
|||||
|
DN |
Dash |
inch |
mm |
mm |
Bar |
Psi |
Bar |
Psi |
mm |
Kg/m |
Meter/Roll |
|
|
5 |
-3 |
3/16 |
4.8 |
13.7 |
210 |
3045 |
840 |
12180 |
76 |
0.24 |
50/100 |
|
|
6 |
-4 |
1/4 |
6.4 |
15.3 |
210 |
3045 |
840 |
12180 |
86 |
0.29 |
50/100 |
|
|
8 |
-5 |
5/16 |
7.9 |
17.6 |
155 |
2210 |
630 |
9135 |
102 |
0.36 |
50/100 |
|
|
11 |
-7.5 |
13/32 |
10.3 |
20.0 |
140 |
2030 |
560 |
8120 |
117 |
0.48 |
50/100 |
|
|
12 |
-8 |
1/2 |
12.7 |
24.0 |
122 |
1710 |
490 |
7105 |
140 |
0.55 |
50/100 |
|
|
16 |
-10 |
5/8 |
15.9 |
28.0 |
105 |
1520 |
420 |
6010 |
165 |
0.65 |
50 |
|
|
22 |
-14 |
7/8 |
22.2 |
32.2 |
56 |
810 |
224 |
3250 |
187 |
0.69 |
20/40 |
|
|
28 |
-22 |
11/8 |
28.6 |
38.8 |
43 |
620 |
175 |
2540 |
229 |
0.84 |
20/40 |
|
|
35 |
-26 |
13/8 |
35.0 |
45.2 |
35 |
510 |
140 |
2030 |
267 |
1.03 |
20/40 |
|
|
46 |
-28 |
113/16 |
46.0 |
57.6 |
24 |
350 |
98 |
1420 |
337 |
1.26 |
20/40 |
|
|
60 |
-38 |
23/8 |
60.5 |
74.2 |
24 |
350 |
98 |
1420 |
610 |
2.00 |
20/40 |
|
|
75 |
-48 |
3 |
75.5 |
91.7 |
14 |
200 |
56 |
810 |
840 |
3.00 |
20/40 |
|
