SAE 100 R6

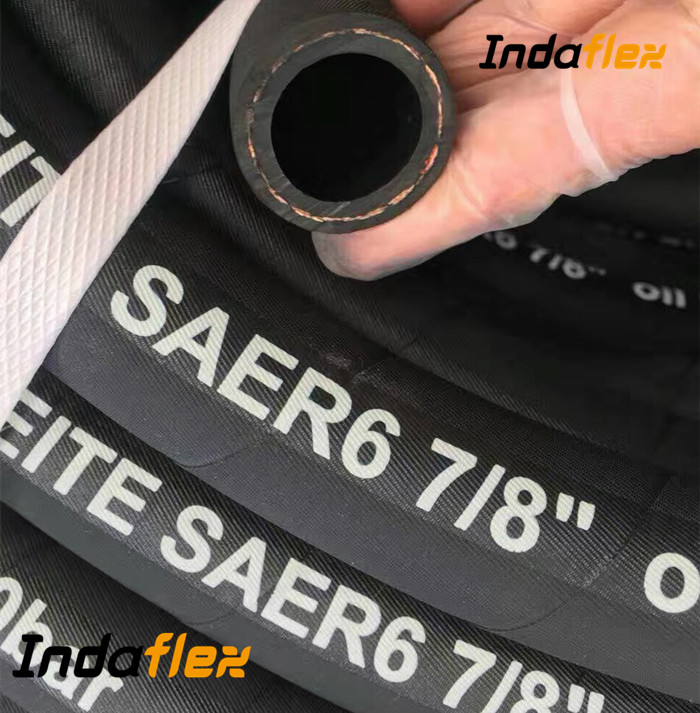

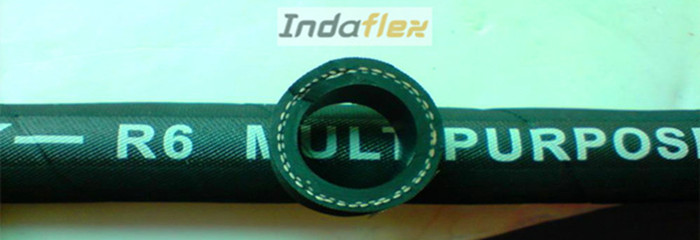

INDAFLEX HYDRAULIC HOSE R6
Fiber Braided Hydraulic Hose SAE J517 100 R3 STANDARD
Tube: Oil resistant synthetic rubber
Reinforcement: One high tensile textile fiber braids
Cover : Black, Oil, Abrasion and weather resistant synthetic rubber
Temperature Range: -40 ºC to +100 ºC
Applications: for transmission of hydraulic fluids, such as mineral oils, emulsions, hydrocarbons etc.
|
Hose Size |
Hose I.D |
Hose O.D |
Working Pressure |
Burst Pressure |
Minimum Bend Radius |
Weight |
Length |
|||||
|
DN |
Dash |
inch |
mm |
mm |
Bar |
Psi |
Bar |
Psi |
mm |
Kg/m |
Meter/Roll |
|
|
5 |
-3 |
3/16 |
4.8 |
11.1 |
34 |
500 |
138 |
2000 |
50 |
0.11 |
50/100 |
|
|
6 |
-4 |
1/4 |
6.4 |
12.7 |
28 |
400 |
110 |
1600 |
65 |
0.14 |
50/100 |
|
|
8 |
-5 |
5/16 |
7.9 |
14.3 |
28 |
400 |
110 |
1600 |
75 |
0.15 |
50/100 |
|
|
10 |
-6 |
3/8 |
9.5 |
15.9 |
28 |
400 |
110 |
1600 |
75 |
0.18 |
50/100 |
|
|
12 |
-8 |
1/2 |
12.7 |
19.8 |
28 |
400 |
110 |
1600 |
100 |
0.26 |
50/100 |
|
|
16 |
-10 |
5/8 |
15.9 |
23.0 |
24 |
350 |
97 |
1400 |
125 |
0.30 |
50/100 |
|
|
19 |
-12 |
3/4 |
19.0 |
26.6 |
21 |
300 |
83 |
1200 |
150 |
0.40 |
50/100 |
|
