SAE 100 R7

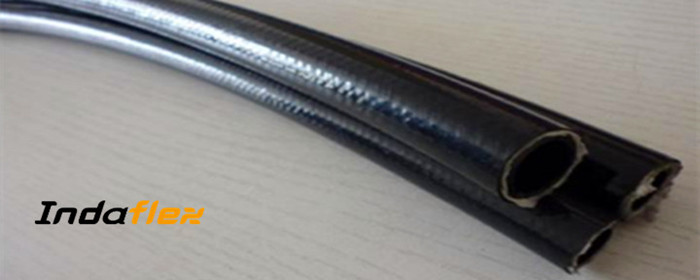

INDAFLEX HYDRAULIC HOSE R7
Thermoplastic Hydraulic Hose SAE 100 R7 STANDARD
Tube: Nylon
Reinforcement: A single fiber braided or by a single wire braided/ Double wire braided or two fiber braided
Cover: Polyurethane
Temperature Range: -40 ºC to +100 ºC
Applications: Engineering machine, machine tool, automobile, mining , air-condition refrigeration, food, chemical industry
|
Hose Size |
Hose I.D |
Hose O.D |
Working Pressure |
Burst Pressure |
Minimum Bend Radius |
Weight |
Length |
|||||
|
DN |
Dash |
inch |
mm |
mm |
Bar |
Psi |
Bar |
Psi |
mm |
Kg/m |
Meter/Roll |
|
|
4 |
-2.5 |
5/32 |
4.0 |
9 |
380 |
5510 |
1520 |
22040 |
30 |
0.10 |
>=40 |
|
|
5 |
-3 |
3/16 |
4.8 |
9.8 |
350 |
5070 |
1400 |
20300 |
30 |
0.13 |
>=40 |
|
|
6 |
-4 |
1/4 |
6.4 |
11.7 |
275 |
3990 |
1100 |
15950 |
40 |
0.16 |
>=40 |
|
|
8 |
-5 |
5/16 |
7.9 |
14.3 |
250 |
3620 |
1000 |
14500 |
55 |
0.21 |
>=40 |
|
|
10 |
-6 |
3/8 |
9.5 |
15.9 |
225 |
2260 |
900 |
13050 |
65 |
0.24 |
>=40 |
|
|
12 |
-8 |
1/2 |
12.7 |
19.8 |
175 |
2540 |
700 |
10150 |
85 |
0.31 |
>=40 |
|
|
16 |
-10 |
5/8 |
15.9 |
23.3 |
140 |
2030 |
560 |
8120 |
115 |
0.41 |
>=40 |
|
|
19 |
-12 |
3/4 |
19.0 |
26.5 |
120 |
1740 |
480 |
6960 |
140 |
0.50 |
>=40 |
|
|
25 |
-16 |
1 |
25.4 |
34.0 |
100 |
1450 |
400 |
5800 |
180 |
0.65 |
>=40 |
|
