SAE 100 R8

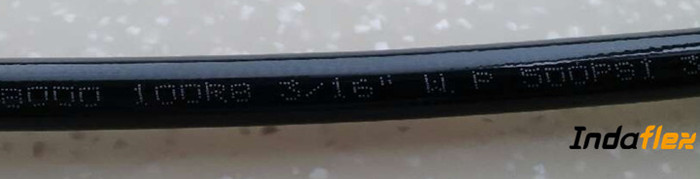

INDAFLEX HYDRAULIC HOSE R8
Thermoplastic Hydraulic Hose SAE 100 R8 STANDARD
Tube: Nylon
Reinforcement: Aramid fiber ( Less 1/4” one aramid fiber braid, from 1/4 to up by two aramid fiber braided）
Cover: Polyurethane
Temperature Range: -40 ºC to +100 ºC
Applications: Pressure test pipe of machine, aviation spaceflight, high-pressure machine
|
Hose Size |
Hose I.D |
Hose O.D |
Working Pressure |
Burst Pressure |
Minimum Bend Radius |
Weight |
Length |
|||||
|
DN |
Dash |
inch |
mm |
mm |
Bar |
Psi |
Bar |
Psi |
mm |
Kg/m |
Meter/Roll |
|
|
2 |
-1 |
1/12 |
2 |
5 |
630 |
9130 |
2520 |
36540 |
20 |
0.02 |
>=40 |
|
|
3 |
-2 |
1/8 |
3 |
6 |
630 |
9130 |
2520 |
36540 |
25 |
0.03 |
>=40 |
|
|
5 |
-3 |
3/16 |
4.8 |
10.3 |
350 |
5070 |
1400 |
20300 |
35 |
0.07 |
>=40 |
|
|
6 |
-4 |
1/4 |
6.3 |
12.3 |
375 |
5070 |
1500 |
21700 |
40 |
0.09 |
>=40 |
|
|
8 |
-5 |
5/16 |
7.9 |
14.3 |
325 |
4710 |
1300 |
18850 |
45 |
0.11 |
>=40 |
|
|
10 |
-6 |
3/8 |
9.5 |
16.7 |
280 |
4060 |
1120 |
16240 |
60 |
0.15 |
>=40 |
|
|
12 |
-8 |
1/2 |
12.7 |
19.8 |
250 |
3620 |
1000 |
14500 |
80 |
0.21 |
>=40 |
|
|
16 |
-10 |
5/8 |
15.9 |
24.5 |
225 |
3260 |
900 |
13050 |
120 |
0.29 |
>=40 |
|
|
19 |
-12 |
3/4 |
18.9 |
28.0 |
175 |
2540 |
700 |
10150 |
140 |
0.35 |
>=40 |
|
|
25 |
-16 |
1 |
25.4 |
34.0 |
150 |
2170 |
600 |
8700 |
160 |
0.45 |
>=40 |
|
