SAE 100 R9

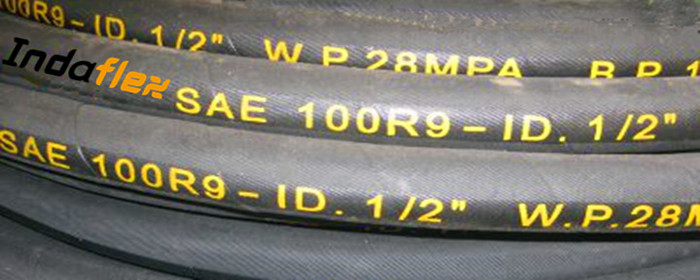

INDAFLEX SAE 100 R9
Steel Wire Spiral Hydraulic Rubber Hose
SAE 100 R9
Inner Tube: Black, Oil resistant synthetic rubber
Reinforcement: Four layers spirals of high tensile steel wire
Cover: Black, Oilproof, Abrasion and weather resistant synthetic rubber
Working Temperature: -40 ºC to +100 ºC
Applications: For medium pressure hydraulic oil lines,grease lines,water line and power steering hoses.
Technical Details
|
Hose Size |
Hose I.D |
Hose O.D |
Working Pressure |
Min. Burst Pressure |
Min. Bend Radius |
Weight |
Length |
||||||
|
DN |
Dash |
Inch |
mm |
Inch |
mm |
Bar |
Psi |
Bar |
Psi |
Inch |
mm |
Kg/m |
Meter/Roll |
|
10 |
-6 |
3/8 |
9.5 |
0.83 |
21.0 |
315 |
4560 |
1260 |
18270 |
4.9 |
125 |
0.70 |
40 |
|
12 |
-8 |
1/2 |
12.7 |
0.96 |
24.0 |
280 |
4060 |
1120 |
16000 |
7.1 |
180 |
0.83 |
40 |
|
19 |
-12 |
3/4 |
19.1 |
1.23 |
31.4 |
210 |
3045 |
840 |
12180 |
9.4 |
240 |
1.30 |
40 |
|
25 |
-16 |
1 |
25.4 |
1.54 |
39.1 |
210 |
3045 |
840 |
12180 |
11.8 |
300 |
1.70 |
40 |
|
32 |
-20 |
11/4 |
31.8 |
1.90 |
48.5 |
175 |
2538 |
700 |
10150 |
16.5 |
420 |
3.08 |
40 |
|
38 |
-24 |
11/2 |
38.1 |
2.18 |
55.3 |
140 |
2030 |
560 |
8120 |
19.7 |
500 |
4.30 |
40 |
|
51 |
-32 |
2 |
50.8 |
2.72 |
69.2 |
140 |
2030 |
560 |
8120 |
24.8 |
660 |
5.63 |
40 |
