SAE 100 R13

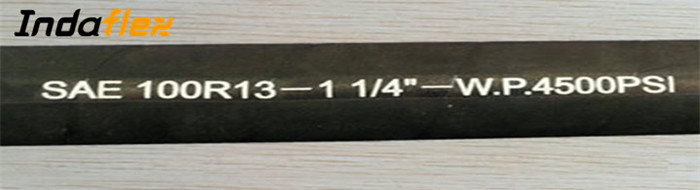

INDAFLEX SAE 100 R13
Steel Wire Spiral Hydraulic Rubber Hose
SAE 100 R13
Inner Tube: Black, Oil resistant synthetic rubber
Reinforcement: Four or Six layers spirals of high tensile steel wire(Six for 11/4”,11/2” and 2”)
Cover: Black, Oilproof, Abrasion and weather resistant synthetic rubber
Working Temperature: -40 ºC to +100 ºC
Applications: Extremely high pressure & high impulse hydraulic systems. They are used for biodegradable hydraulic fluid, such as synthetic esters, polyethylene glycol,vegetable oils and petroleum based fluids.
Technical Details
|
Hose Size |
Hose I.D |
Hose O.D |
Working Pressure |
Min. Burst Pressure |
Min. Bend Radius |
Weight |
Length |
||||||
|
DN |
Dash |
Inch |
mm |
Inch |
mm |
Bar |
Psi |
Bar |
Psi |
Inch |
mm |
Kg/m |
Meter/Roll |
|
19 |
-12 |
3/4 |
19.1 |
1.26 |
32.0 |
345 |
5000 |
1380 |
20000 |
9.45 |
240 |
1.65 |
40 |
|
25 |
-16 |
1 |
25.4 |
1.54 |
39.2 |
345 |
5000 |
1380 |
20000 |
11.80 |
300 |
2.25 |
40 |
|
32 |
-20 |
11/4 |
31.8 |
1.96 |
49.8 |
345 |
5000 |
1380 |
20000 |
16.54 |
420 |
3.60 |
40 |
|
38 |
-24 |
11/2 |
38.1 |
2.26 |
57.3 |
345 |
5000 |
1380 |
20000 |
19.69 |
500 |
4.75 |
40 |
|
51 |
-32 |
2 |
50.8 |
2.83 |
71.9 |
345 |
5000 |
1380 |
20000 |
24.80 |
630 |
6.90 |
40 |
