SAE 100 R15

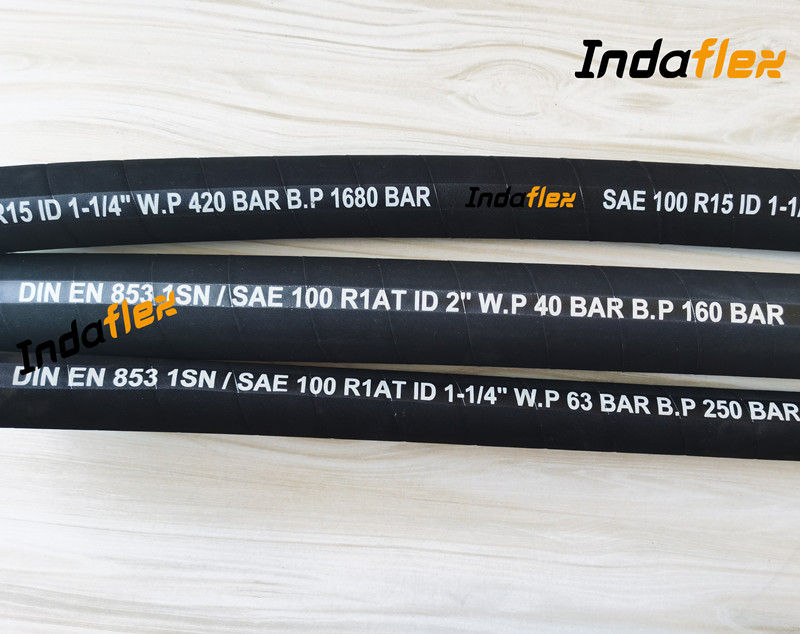

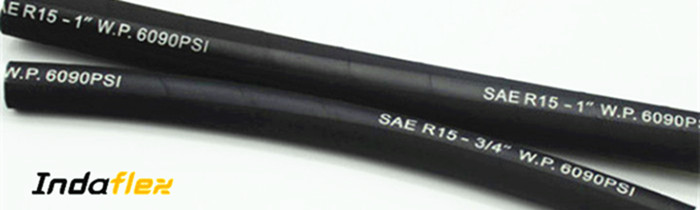

INDAFLEX SAE 100 R15
Steel Wire Spiral Hydraulic Rubber Hose
SAE 100 R15
Inner Tube: Black, Oil resistant synthetic rubber
Reinforcement: Four or Six layers spirals of high tensile steel wire(Six for 11/4”,11/2” and 2”)
Cover: Black, Oilproof, Abrasion and weather resistant synthetic rubber
Working Temperature: -40 ºC to +100 ºC
Applications: Extremely high pressure & high impulse hydraulic applications such as hydrostatic transmissions. They are used for biodegradable hydraulic fluid, such as synthetic esters, polyethylene glycol,vegetable oils and petroleum based fluids.
Technical Details
|
Hose Size |
Hose I.D |
Hose O.D |
Working Pressure |
Min. Burst Pressure |
Min. Bend Radius |
Weight |
Length |
||||||
|
DN |
Dash |
Inch |
mm |
Inch |
mm |
Bar |
Psi |
Bar |
Psi |
Inch |
mm |
Kg/m |
Meter/Roll |
|
19 |
-12 |
3/4 |
19.1 |
1.26 |
36.1 |
420 |
6090 |
1680 |
24360 |
10.5 |
267 |
1.50 |
40 |
|
25 |
-16 |
1 |
25.4 |
1.54 |
42.9 |
420 |
6090 |
1680 |
24360 |
13.0 |
330 |
2.10 |
40 |
|
32 |
-20 |
11/4 |
31.8 |
1.96 |
51.5 |
420 |
6090 |
1680 |
24360 |
17.5 |
445 |
3.60 |
40 |
|
38 |
-24 |
11/2 |
38.1 |
2.26 |
59.6 |
420 |
6090 |
1680 |
24360 |
21.0 |
533 |
5.10 |
40 |
|
51 |
-32 |
2 |
51.0 |
2.86 |
72.7 |
420 |
6090 |
1680 |
24360 |
24.8 |
630 |
6.90 |
40 |
