SAE 100 R17

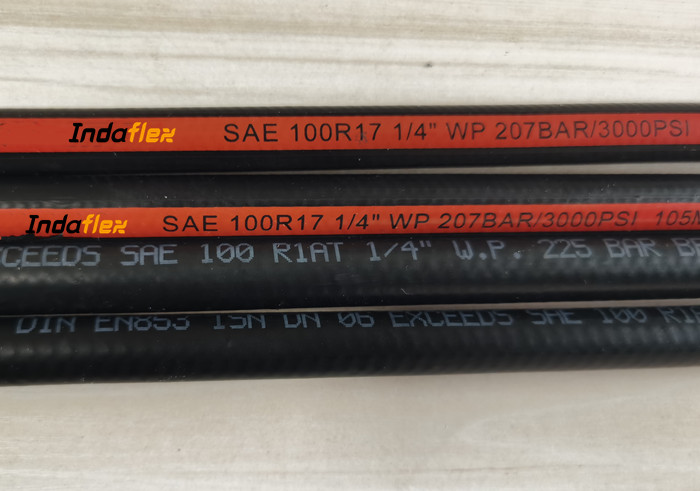

INDAFLEX SAE 100 R17
Steel Wire Braid Hydraulic Hose
SAE 100 R17
Tube: Black, Oil resistant synthetic rubber
Reinforcement: braid of high tensile steel wire. Size: 1/4”.5/16”,3/8”,1/2”--One Braid; Size:5/8”,3/4”, 1”---Two Braids
Cover: Black, Oilproof, Abrasion and weather resistant synthetic rubber
Working Temperature: -40 ºC to +100 ºC
Applications: This Hose has smaller exterior dimensions and smaller bend radius compared to standard SAE 100 R1 & SAE 100 R2.
Technical Details
|
Hose Size |
Hose I.D |
Hose O.D |
Working Pressure |
Min. Burst Pressure |
Min. Bend Radius |
Weight |
Length |
||||||
|
DN |
Dash |
Inch |
mm |
Inch |
mm |
Bar |
Psi |
Bar |
Psi |
Inch |
mm |
Kg/m |
Meter/Roll |
|
5 |
-3 |
3/16 |
5.0 |
0.43 |
11.0 |
210 |
3045 |
840 |
12180 |
1.77 |
45 |
0.16 |
50/100 |
|
6 |
-4 |
1/4 |
6.4 |
0.48 |
12.2 |
210 |
3045 |
840 |
12180 |
1.97 |
50 |
0.19 |
50/100 |
|
8 |
-5 |
5/16 |
7.9 |
0.60 |
15.1 |
210 |
3045 |
840 |
12180 |
2.16 |
55 |
0.22 |
50/100 |
|
10 |
-6 |
3/8 |
9.5 |
0.63 |
16.0 |
210 |
3045 |
840 |
12180 |
2.56 |
65 |
0.27 |
50/100 |
|
12 |
-8 |
1/2 |
12.7 |
0.80 |
20.2 |
210 |
3045 |
840 |
12180 |
3.54 |
90 |
0.46 |
50/100 |
|
16 |
-10 |
5/8 |
15.9 |
0.99 |
25.2 |
210 |
3045 |
840 |
12180 |
3.93 |
100 |
0.57 |
50/100 |
|
19 |
-12 |
3/4 |
19.0 |
1.15 |
29.1 |
210 |
3045 |
840 |
12180 |
4.72 |
120 |
0.78 |
50/100 |
|
25 |
-16 |
1 |
25.4 |
1.56 |
37.6 |
210 |
3045 |
840 |
12180 |
5.90 |
150 |
1.40 |
50 |
