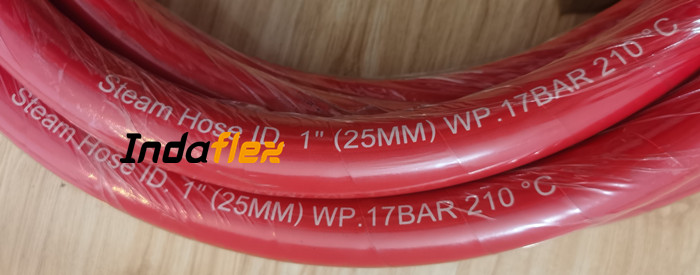

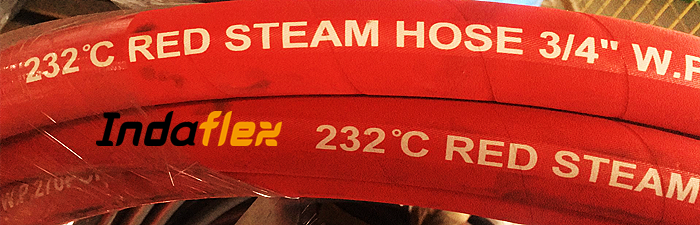

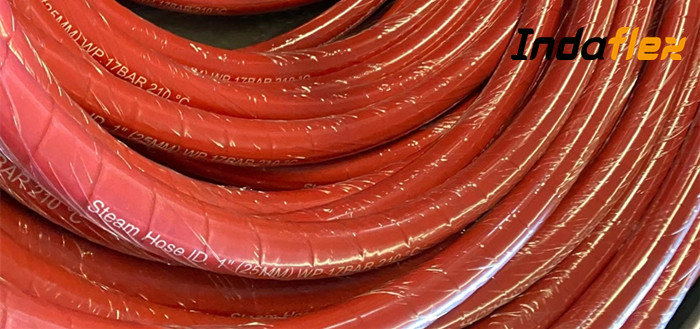

RED STEAM HOSE 17BAR
INDAFLEX STEAM HOSE 235C
Inner Tube: Black, smooth EPDM, super steam and water resistance rubber
Reinforcement: braided of high tensile steel wire
Cover: Red or Black, smooth EPDM,heat,corrosion and abrasion resistant synthetic rubber
Working Temperature: -40 ºC to +235 ºC
CAUTION: DO NOT ALTERNATE USE BETWEEN STEAM AND WATER.
Technical Details
|
Hose Size |
Hose I.D |
Hose O.D |
Working Pressure |
Min. Burst Pressure |
Min. Bend Radius |
Weight |
Length |
||||||
|
DN |
Dash |
Inch |
mm |
Inch |
mm |
Bar |
Psi |
Bar |
Psi |
Inch |
mm |
Kg/m |
Meter/Roll |
|
12 |
-8 |
1/2 |
12.7 |
1 |
25.0 |
17 |
250 |
170 |
2500 |
7.09 |
180 |
0.53 |
50/100 |
|
16 |
-10 |
5/8 |
15.9 |
1.10 |
28.1 |
17 |
250 |
170 |
2500 |
7.87 |
200 |
0.60 |
50/100 |
|
19 |
-12 |
3/4 |
19.1 |
1.26 |
32.0 |
17 |
250 |
170 |
2500 |
9.45 |
240 |
0.68 |
50/100 |
|
25 |
-16 |
1 |
25.4 |
1.54 |
39.0 |
17 |
250 |
170 |
2500 |
11.81 |
300 |
0.90 |
50 |
|
32 |
-20 |
11/4 |
31.8 |
1.92 |
49.0 |
17 |
250 |
170 |
2500 |
16.54 |
420 |
1.60 |
40 |
|
38 |
-24 |
11/2 |
38.1 |
2.22 |
56.5 |
17 |
250 |
170 |
2500 |
19.69 |
500 |
2.05 |
40 |
|
51 |
-32 |
2 |
50.8 |
2.69 |
68.5 |
17 |
250 |
170 |
2500 |
24.80 |
630 |
2.85 |
40 |
|
63 |
40 |
21/2 |
63.8 |
3.15 |
80.0 |
17 |
250 |
170 |
2500 |
29.92 |
760 |
3.18 |
40 |
|
76 |
48 |
3 |
76.0 |
3.68 |
93.5 |
17 |
250 |
170 |
2500 |
34.65 |
880 |
3.80 |
40 |
