Air Water Hose

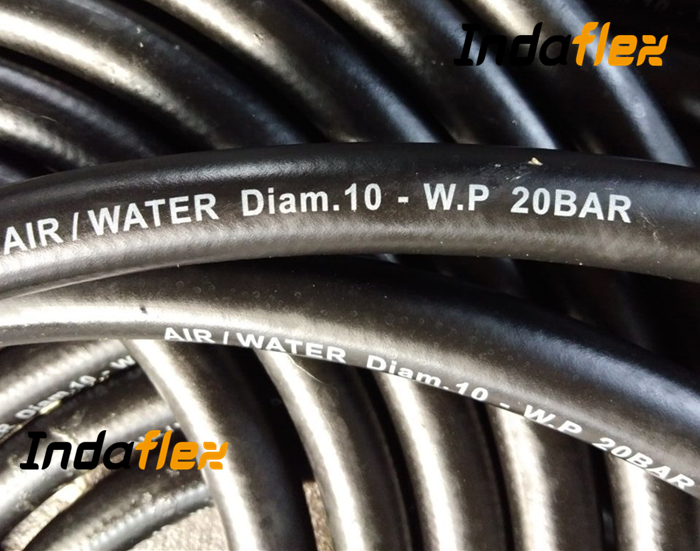

Indaflex Air Water Hose
Hose Structure
Tube: black, smooth synthetic SBR
Reinforcement: High tensile synthetic yarn braid/spiral
Cover: Black, yellow, Smooth/Wrapped cover, Abrasion, weather and ozone resistant synthetic rubber
Application: for a variety of general purposes in industries,construction sites and mines.
Working Temperature: -20ºC + 80ºC
Techncial Details
|
Inside Diameter |
Outer Diameter |
Working Pressure |
Burst Pressure
|
Bend Radius |
Weight (kg/m) |
Roll/M |
|||
|
mm |
Inch |
mm |
Bar |
Psi |
Bar |
PSI |
mm |
Kg/m |
M |
|
6.3 |
1/4 |
13 |
20 |
300 |
60 |
900 |
35 |
0.15 |
30~100 |
|
8 |
5/16 |
15 |
20 |
300 |
60 |
900 |
50 |
0.23 |
30~100 |
|
10 |
3/8 |
17 |
20 |
300 |
60 |
900 |
60 |
0.26 |
30~100 |
|
13 |
1/2 |
22 |
20 |
300 |
60 |
900 |
70 |
0.36 |
30~100 |
|
16 |
5/8 |
26 |
20 |
300 |
60 |
900 |
90 |
0.60 |
30~100 |
|
19 |
3/4 |
29 |
20 |
300 |
60 |
900 |
125 |
0.76 |
30~100 |
|
25 |
1 |
38 |
20 |
300 |
60 |
900 |
130 |
1.05 |
30~100 |
|
32 |
1-1/4 |
46 |
20 |
300 |
60 |
900 |
230 |
1.20 |
40 |
|
38 |
1/1-2 |
56 |
20 |
300 |
60 |
900 |
270 |
1.70 |
40 |
|
45 |
1-3/4 |
61 |
20 |
300 |
60 |
900 |
320 |
1.80 |
40 |
|
50 |
2 |
70 |
20 |
300 |
60 |
900 |
360 |
1.98 |
40 |
|
64 |
2-1/2 |
78 |
20 |
300 |
60 |
900 |
450 |
2.20 |
40 |
|
76 |
3 |
90 |
20 |
300 |
60 |
900 |
450 |
2.60 |
40 |
|
102 |
4 |
116 |
20 |
300 |
60 |
900 |
600 |
3.40 |
40 |

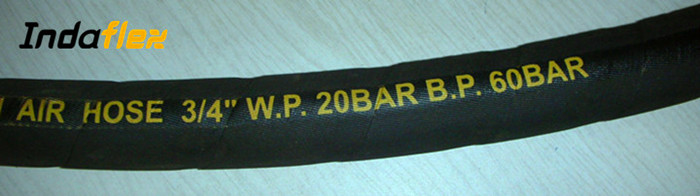

Notice: From 1/4” to 1/2” is Smooth Cover; from 5/8” to up is Wrapped Cover
