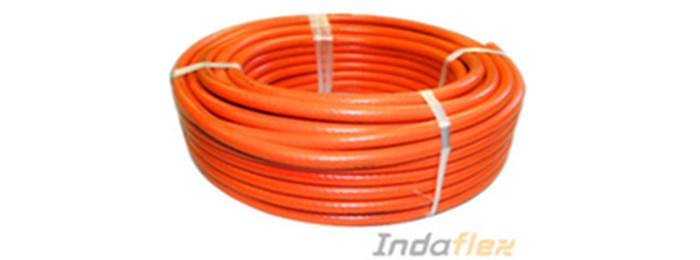

LPG Hose
Hose Structure
Tube: LPG resistant synthetic rubber
Reinforcement: one high tensile synthetic yarn braid
Cover: Black, orange , Smooth, weather, abrasion and ozone resistant
Application: Conveying LPG Gases
Temperature: -40ºC + 90 ºC
Packing: Trans. P.V.C. film
|
Size
|
Wall thickness |
W.P. |
B.P. |
Min B.R |
W.T |
|||
|
mm |
inch |
mm |
BAR |
Psi |
BAR |
Psi |
mm |
Kg/M |
|
6 |
1/4” |
3.5 |
20 |
290 |
60 |
870 |
60 |
0.16 |
|
8 |
5/16 |
3.5 |
20 |
290 |
60 |
870 |
80 |
0.19 |
|
10 |
3/8 |
3.5 |
20 |
290 |
60 |
870 |
100 |
0.23 |
|
12.5 |
1/2 |
4.0 |
20 |
290 |
60 |
870 |
130 |
0.32 |
