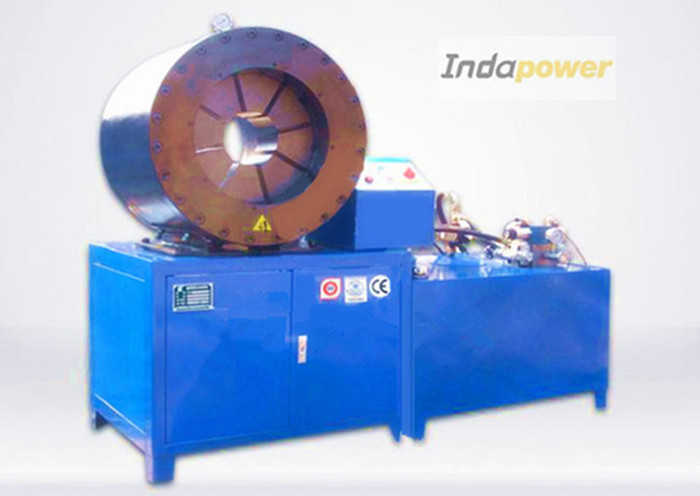

IDP-400 Hose Crimping Machine
Technical Details
|
Model No. |
IDP-400 Hose Crimping Machine |
|
Crimping Range |
Hose ID: 51-400mm(2.008’-15.748’） |
|
Hose OD :80-600mm(3.150’-23.622’) |
|
|
Max Opening |
600mm(23.622’) |
|
Crimping Force |
2060T |
|
Die Sets |
2”,3”,4”,5”,6” ,8”,10”,12”,14”,16”(High Pressure), 51mm, 76mm,102mm,127mm( Low Pressure) Total 14 Sets |
|
Length of Die |
130mm |
|
Length of Crimp Hose |
Unlimited |
|
System Pressure |
315Pa |
|
Operation Mode |
Automatic |
|
Matching Power Source |
220V-380V/50HZ |
|
Matching Power |
18KW |
|
Mold Opening Time |
6S |
|
Mold Closing Time |
15S |
|
Dimension(L*W*H) |
1200*900*1600mm(47.244’*35.433’*62.992’) |
|
Total Weight |
1550KG |
|
Hydraulic Oil |
46# |
|
Warranty |
3 Years |
