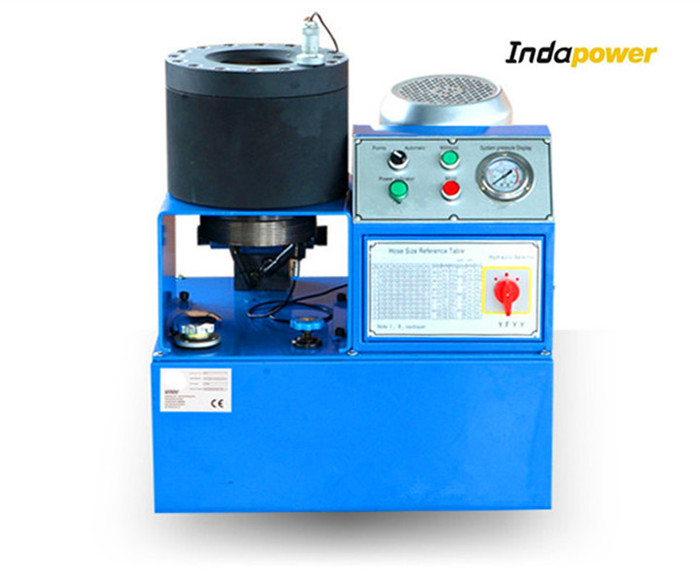

IDP-80 Hose Crimping Machine
Technical Details
|
Model No. |
IDP-80 Hose Crimping Machine |
|
Crimping Range |
Hose ID: 4-32mm(0.157’-2.260’） |
|
Hose OD :6-80mm(0.236’-3.150’) |
|
|
Max Opening |
80mm(3.150’) |
|
Crimping Force |
600T |
|
Die Sets |
1/4”,5/16’,3/8”,1/2”,5/8”,3/4”,1”,11/4”,(High Pressure), 4mm，6mm, 8mm,10mm( Low Pressure) Total 12 Sets |
|
Length of Die |
65mm/80mm |
|
Length of Crimp Hose |
Unlimited |
|
System Pressure |
315Pa |
|
Operation Mode |
Automatic |
|
Matching Power Source |
220V-380V/50HZ |
|
Matching Power |
3KW/4KW |
|
Mold Opening Time |
1.2S |
|
Mold Closing Time |
6S |
|
Dimension(L*W*H) |
600*480*600mm(23.622’*18.898*23.622’) |
|
Total Weight |
220KG |
|
Hydraulic Oil |
46# |
|
Warranty |
3 Years |
