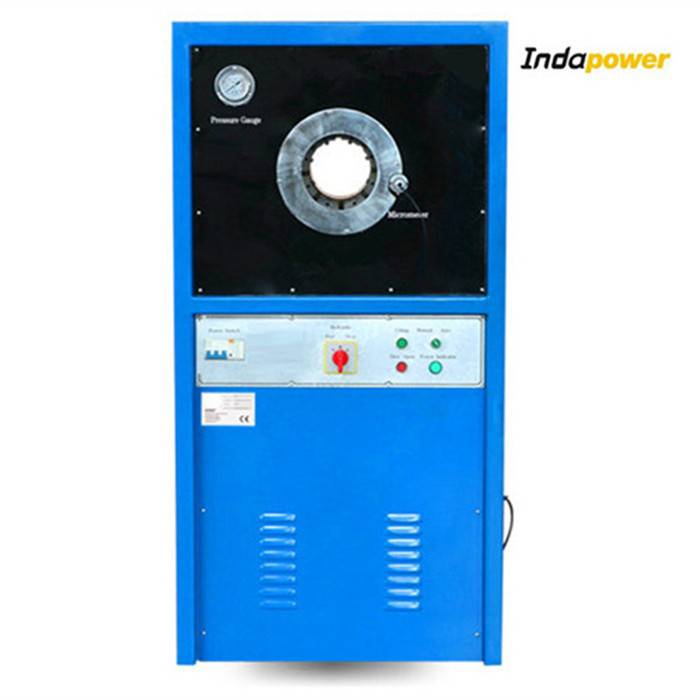

IDP-76 Hose Crimping Machine





Technical Details



Model No.

IDP-76 Hose Crimping Machine

Crimping Range

Hose ID: 6-76mm(0.236-2.992

Hose OD :14-130mm(0.551-5.118)

Max Opening

130mm(5.118)

Crimping Force

820T

Die Sets

1/4,5/16,3/8,1/2,5/8,3/4,1,11/4,11/2,2,21/2,3(High Pressure), 8mm,10mm( Low Pressure)

Total 12 Sets

Length of Die

65mm/80mm

Length of Crimp Hose

Unlimited

System Pressure

315Pa

Operation Mode

Automatic

Matching Power Source

220V-380V/50HZ

Matching Power

5.5KW

Mold Opening Time

3S

Mold Closing Time

13S

Dimension(L*W*H)

900*500*1450mm(35.433*19.685*57.087)

Total Weight

520KG

Hydraulic Oil

46#

Warranty

3 Years
