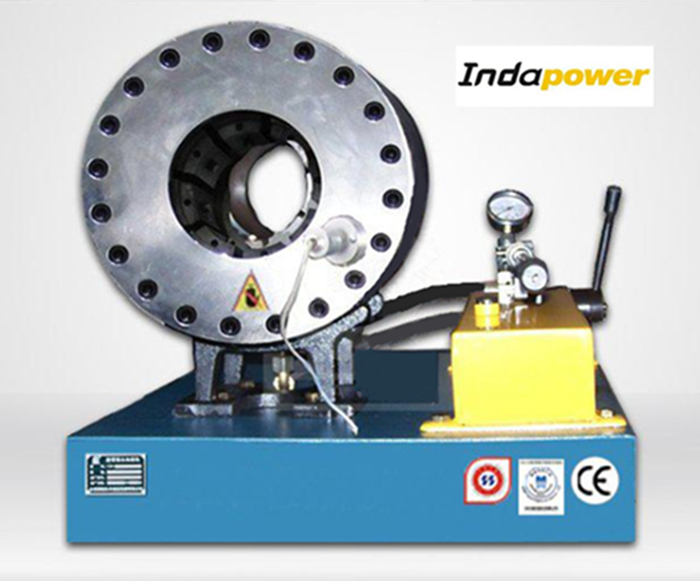

IDP-25 Hose Crimping Machine
Technical Details
|
Model No. |
IDP-25 Hose Crimping Machine |
|
Crimping Range |
Hose ID: 5-25mm(0.197’-0.984’） |
|
Hose OD :10-60mm(0.394’-2.364’) |
|
|
Max Opening |
60mm(2.364’) |
|
Crimping Force |
320T/3200KN |
|
Die Sets |
3/16”,1/4”5/16”,3/8”,1/2”,5/8”,3/4”,1”(8 Sets) |
|
Length of Die |
65mm |
|
Length of Crimp Hose |
Unlimited |
|
System Pressure |
315Pa |
|
Operation Mode |
Manual |
|
Matching Power Source |
220V-380V/50HZ |
|
Mold Opening Time |
6S |
|
Mold Closing Time |
10S |
|
Dimension(L*W*H) |
500*300*400mm(19.685’*11.811*15.748’) |
|
Total Weight |
85KG |
|
Hydraulic Oil |
46# |
|
Warranty |
3 Years |
