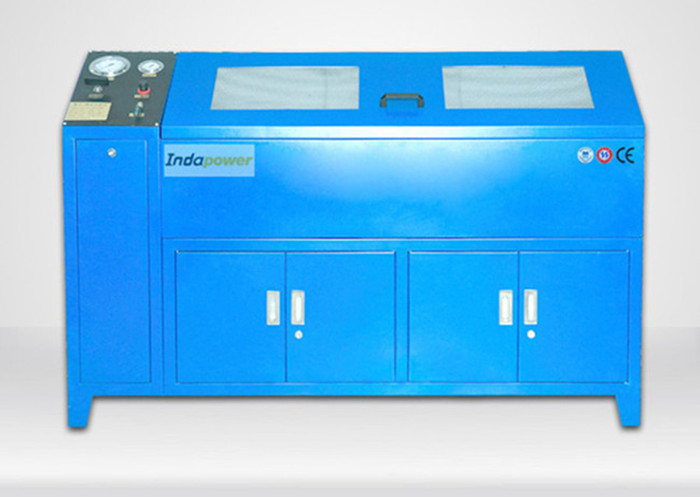

IDP Hose Pressure Test Beach
Technical Details
|
Model No. |
IDP Hose Pressure Test Beach |
|
Capacity |
This machine can do the pressure test from 1/4” to 2”(6mm-51mm) |
|
Test Liquid |
Water/ Hydraulic Oil |
|
Test Pressure |
250-2000 Bar |
|
Matching Power Source |
220V-380V/50HZ |
|
Air Inlet |
8 Bar |
|
High Pressure Outlet |
1/4 Burst Pressure |
|
Flow at Normal Pressure |
1.06L/Min |
|
Driving Mode of System |
Air Drive |
|
Dimension(L*W*H) |
1800*1000*950mm(70.866’*39.370’*37.401’) |
|
Total Weight |
380KG |
|
Warranty |
3 Years |
