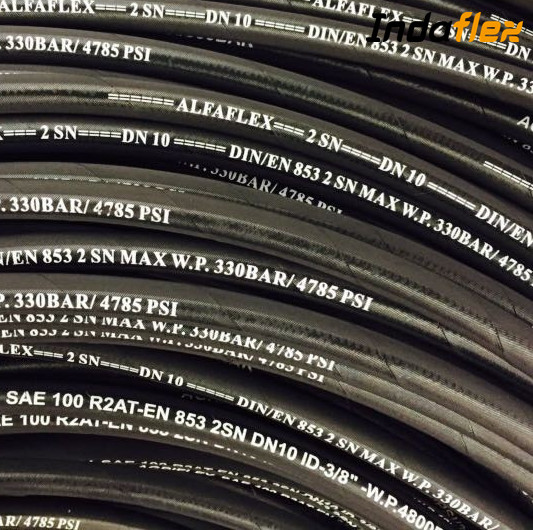

HYDRAULIC HOSE SAE 100 R2AT
INDAFLEX HYDRAULIC HOSE
SAE 100 R2 AT/DIN EN853 2SN
High Pressure Steel Wire Braided Hydraulic Hose
Inner Tube: Black, oil resistant synthetic rubber.
Reinforcement: Two high tensile steel wire braids.
Cover:Black, Oil resistant, Abrasion and weather resistant synthetic rubber
Working Temperature: -40℃ +100℃
Application:Medium pressure hydraulic application including mobile,machine tool and agricultural
application,using petroleum water based hydraulic fluids.High Pressure and High Temperature Hydraulic
Rubber Hose with steel wire reinforcement are widely used in hydraulic & pneumatic industry ,
construction machinery, mining machinery, coal mines, agricultural machinery ,machine tool,
petroleum delivery, dredging ,drilling machinery, power station, etc
Technical Details for SAE 100 R2AT HOSE:
|
Hose Size |
Hose I.D |
Hose O.D |
Working Pressure |
Min. Burst Pressure |
Min. Bend Radius |
Weight |
||||||
|
mm |
In. |
mm |
In. |
mm |
In. |
Bar |
Psi |
Bar |
Psi |
mm |
In. |
kg/m |
|
6.4 |
1/4 |
6.4 |
1/4 |
15.1 |
0.60 |
400 |
5800 |
1600 |
23200 |
100 |
3.94 |
0.36 |
|
7.9 |
5/16 |
7.9 |
5/16 |
16.3 |
0.64 |
350 |
5075 |
1400 |
20300 |
115 |
4.53 |
0.43 |
|
9.5 |
3/8 |
9.5 |
3/8 |
18.7 |
0.74 |
330 |
4785 |
1320 |
19200 |
125 |
4.92 |
0.55 |
|
12.7 |
1/2 |
12.7 |
1/2 |
21.8 |
0.85 |
275 |
4000 |
1100 |
16000 |
180 |
7.08 |
0.65 |
|
15.9 |
5/8 |
15.9 |
5/8 |
25.1 |
0.98 |
250 |
3625 |
1000 |
14500 |
200 |
7.87 |
0.78 |
|
19.1 |
3/4 |
19.1 |
3/4 |
29.1 |
1.15 |
215 |
3120 |
860 |
12480 |
240 |
9.45 |
0.98 |
|
25.4 |
1 |
25.4 |
1 |
36.4 |
1.43 |
165 |
2400 |
660 |
9600 |
300 |
11.81 |
1.35 |
|
31.8 |
1 1/4 |
31.8 |
1 1/4 |
47.1 |
1.85 |
125 |
1810 |
500 |
7240 |
420 |
16.55 |
2.00 |
|
38.1 |
1 1/2 |
38.1 |
1 1/2 |
53.5 |
2.10 |
90 |
1305 |
360 |
5220 |
500 |
19.70 |
2.35 |
|
50.8 |
2 |
50.8 |
2 |
65.5 |
2.57 |
80 |
1160 |
320 |
4640 |
630 |
24.80 |
2.70 |
|
63.8 |
2 1/2 |
63.8 |
2 1/2 |
78.1 |
3.08 |
50 |
725 |
200 |
2900 |
760 |
29.92 |
3.50 |
|
76.0 |
3 |
76.0 |
3 |
90.5 |
3.56 |
40 |
580 |
160 |
2320 |
880 |
34.65 |
4.00 |
