HYDRAULIC HOSE DIN EN 853 1SN
INDAFLEX HYDRAULIC HOSE
DIN EN853 1SN

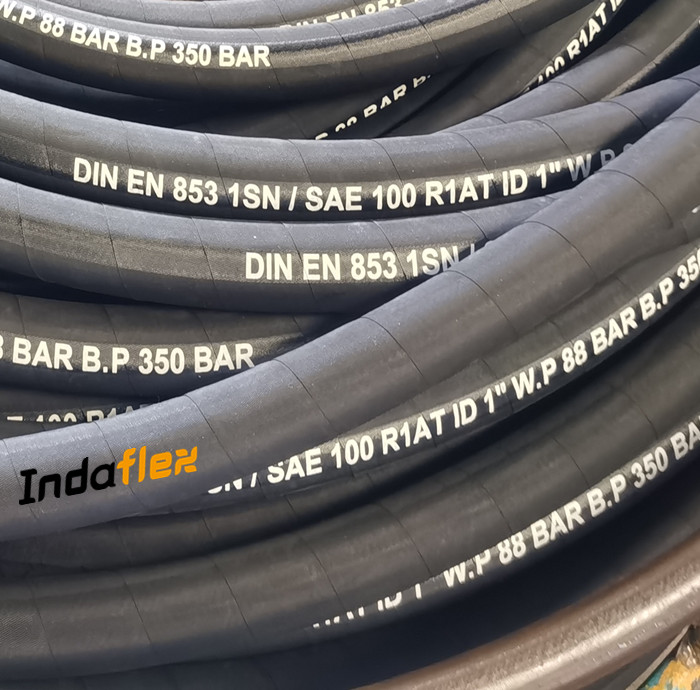

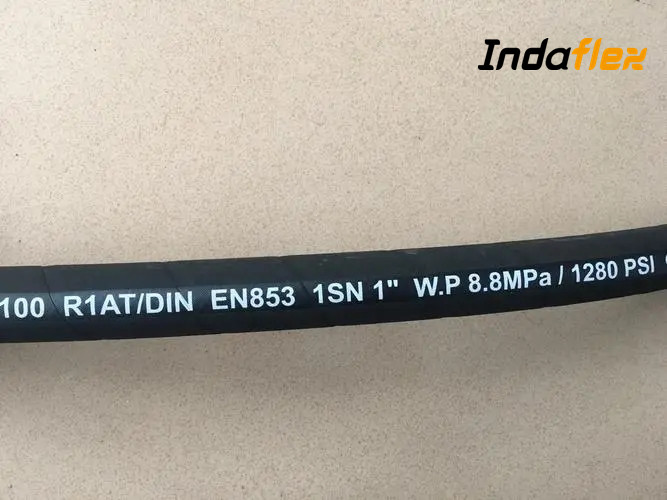

Steel Wire Braided Hydraulic Hose
Application:Transmission hydraulic fluids for medium pressure hydraulic systems of industry or agriculture.
Inner Tube: Black oil resistant synthetic rubber
Reinforcement: One braid high tensile steel wire
Cover:Black, Oil ,Abrasion and weather resistant synthetic rubber
Working Temperature: -40℃ +100℃
Recommended For medium pressure hydraulic lines. Meets or exceeds requirements of SAE 100 R1AT and EN 853 1SN. Our steel wire reinforcement hydraulic hose mainly used in mine hydraulic support,oil exploration,suitable to engineer construction, crane transport,forging metallurgy,mining equipment,ships,injection molding machinery,agricultural machinery various machine tools,and carry hydraulic fluids for industry department mechanization and automatic hydraulic systems,including petroleum base fluids which under specific pressure and temperature(e.g.mineral oil,soluble oil,fuels,lubrication),water based fluids(e.g.emulsion,oil-water emulsion,water),air and fluids.
Technical Details
|
|
|
|
|
|
|
|
||||||
|
Hose Size |
Hose I.D |
Hose O.D |
Working Pressure |
Min. Burst Pressure |
Min. Bend Radius |
Weight |
||||||
|
Mm. |
In. |
mm |
In. |
mm |
In. |
Bar |
Psi |
Bar |
Psi |
Mm |
In. |
kg/m |
|
6.4 |
1/4 |
6.4 |
1/4 |
13.1 |
0.52 |
225 |
3275 |
900 |
13100 |
100 |
3.94 |
0.22 |
|
7.9 |
5/16 |
7.9 |
5/16 |
14.7 |
0.58 |
215 |
3125 |
850 |
12500 |
115 |
4.53 |
0.26 |
|
9.5 |
3/8 |
9.5 |
3/8 |
17.1 |
0.66 |
180 |
2600 |
720 |
10400 |
125 |
4.92 |
0.35 |
|
12.7 |
1/2 |
12.7 |
1/2 |
20.3 |
0.80 |
160 |
3225 |
640 |
9300 |
180 |
7.08 |
0.45 |
|
15.9 |
5/8 |
15.9 |
5/8 |
23.3 |
0.90 |
130 |
1900 |
520 |
7600 |
200 |
7.87 |
0.52 |
|
19.1 |
3/4 |
19.1 |
3/4 |
27.4 |
1.08 |
105 |
1525 |
420 |
6100 |
240 |
9.45 |
0.65 |
|
25.4 |
1 |
25.4 |
1 |
35.1 |
1.38 |
88 |
1275 |
350 |
5100 |
300 |
11.81 |
0.98 |
|
31.8 |
1 1/4 |
31.8 |
1 1/4 |
43.0 |
1.69 |
63 |
925 |
250 |
3700 |
420 |
16.55 |
1.30 |
|
38.1 |
1 1/2 |
38.1 |
1 1/2 |
49.5 |
1.95 |
50 |
725 |
200 |
2900 |
500 |
19.70 |
1.53 |
|
50.8 |
2 |
50.8 |
2 |
63.0 |
2.48 |
40 |
600 |
160 |
2400 |
630 |
24.80 |
2.00 |
|
2 1/2 |
63.8 |
2 1/2 |
63.8 |
77.0 |
3.03 |
25 |
360 |
100 |
1450 |
760 |
29.92 |
2.70 |
|
3 |
76.0 |
3 |
76.0 |
88.0 |
3.48 |
20 |
290 |
80 |
1160 |
880 |
34.65 |
2.90 |
Hose feature:
|
Application |
Medium and low pressure hydraulic piping system |
|
Standard |
SAE 100 R1AT/DIN EN 853 1SN |
|
Inner Tube |
Oil resistant synthetic rubber |
|
Reinforcement |
Two layers of steel wire braid reinforcement |
|
Outer Cover |
High oil resistant, ozone resistant, weather resistant synthetic rubber |
|
Colour |
Black, or as your request |
|
Minimum temperature |
- 40°C |
|
Maximum temperature |
+ 100 ℃ |
|
Translate |
Medium Mineral oil, polyglycol-based hydraulic fluid, water, water-oil emulsion |
Sepcifications for good hydraulic hose
1.Oil&weather resistant rubber
2.Steel wire braided
3.High pressure,good flexible
4.SAE&DIN standard
5.Competitive Prices,faster delivery with high quality hose
6.Raw material quality strictly checked before production
7.Various tests before shipping to make sure stable quality
RFQ
Q1. Do you produce embossed branding or normal branding?
A. Yes, we do provide embossed and printing marking as your request.
Q2. Can you produce product with my own brand?
A. Yes, we have been offering OEM services for long time.
Q3. How long does my order take to be delivered?
A. It usually takes 20 days for a 20ft container quantity, which generally depends on your order quantity.
Q4. Can we get some samples? Any charges?
Yes, free sample can offer, but need you pay shipping cost.
Q5. How can we get a quote?
